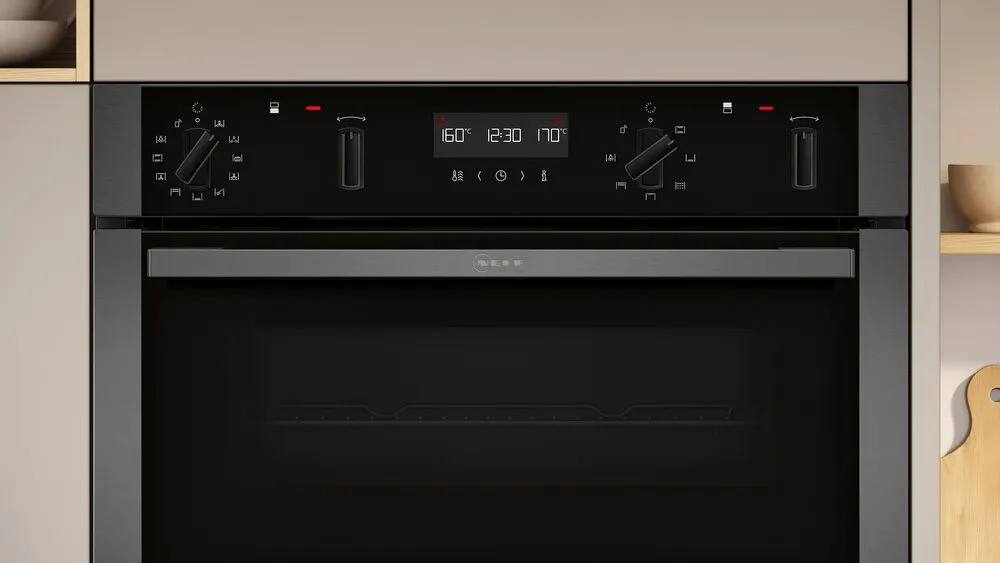

Neff U2ACH7AG7B N50 Built-in double oven

  • CircoTherm® – Smart hot-air solution that lets you bake on up to three levels at once.
  • Dual cleaning options: Pyrolytic cleaning programmes - just let the oven interior clean itself. EasyClean - the quick and easy option for day to day maintenance.
  • LCD-Display – simple, straightforward with large characters for clear reading
  • Home Connect - Control your oven via the App.
  • Remote Monitoring and Control: check-up on your oven, from any room in the house!
Specifications
Features
  • 30 °C - Very low door temperature
  • Quadruple glazed door glazed CoolTouch door
  • Door lock during pyrolytic cleaning
  • Control panel lock
  • Automatic safety switch off
  • Residual heat indicator
  • Door contact switch
Level independent telescopic rails
  • 4 shelf positions
  • Available as an accessory
Design
  • Graphite-Grey Edition
  • Elongated designed dials, Retractable control dials, Bevelled oval controls With steel trim
  • Cavity inner surface: enamel anthracite
Cleaning
  • Pyrolytic cleaning
  • EasyClean
  • Full glass inner door
Programmes/functions
  • LCD-display control (white)
  • Electronic clock timer
  • Temperature proposal
  • Actual temperature display
  • Heating up indicator
  • Automatic start
  • Bar handle
  • Rapid heat
  • Interior halogen light, On/off button
  • Cooling fan
  • HomeConnect ready on WLAN
Accessories
  • 3 x combination grid, 1 x universal pan
Technical information
  • Nominal voltage: 220 - 240 V
  • Total connected load electric: 6.3 KW
  • Energy efficiency rating (acc. EU Nr. 65/2014): A
  • Energy consumption per cycle in conventional mode: 1.02 kWh
  • Energy consumption per cycle in fan-forced convection mode: 0.81 kWh
  • Number of cavities: Main cavity
  • Heat source: electrical
  • Cavity volume: 71 litre
Performance/technical information
  • Appliance dimension (hxwxd): 888 mm x 594 mm x 550 mm
  • Niche dimension (hxwxd): 875 mm - 888 mm x 560 mm - 568 mm x 550 mm
  • “For-details-on-installation-and-ventilation requirements – please refer to the installation manual prior to fitting.”
  • We recommend you to choose complementary products within N50, in order to assure an optimal design combination of your Built-In appliances.
Product series N 50
Main colour of product Graphite
Basic color of product Grey
Door colour Graphite
Construction type Built-in
Material of control panel Glass
Type of control settings Rotary control;Via app
Are any hobs controls integrated? No
Door material of cavity Glass
Door hinge Drop down
Energy input Electric
Electrical connection rating 6300 W
Current 32
Voltage 220-240 V
Voltage Minimum 220 V
Voltage Maximum 240 V
Frequency 50
Frequency Minimum 50
Frequency maximum 50
Plug type fixed connection (electrical connection by electrician), no plug (electrical connection by electrician)
Depth with open door 90 degree 1040 mm
Height of the product 888 mm
Width of the product 594 mm
Depth of the product 550 mm
Height of the packed product 960 mm
Width of the packed product 660 mm
Depth of the packed product 690 mm
Minimum niche height 875 mm
Maximum niche height 888 mm
Minimum niche width 560 mm
Maximum niche width 560 mm
Niche depth 550 mm
Net weight 58.7 kg
Gross weight 61.4 kg
Cooking method of the cavity Bottom heat, Bread Baking Setting, Conventional heat, Full width grill, Hot Air, Hotair gentle, Hot air grilling, Pizza setting
Cooking method of the second cavity Bottom heat, Conventional heat, Full width grill, Half width grill
Type of energy of the cavity Electricity
Type of energy of the second cavity Electricity
Energy efficiency class (2010/30/EU) A
Energy efficiency class (2010/30/EU) - cavity 2 B
Energy consumption per cycle conventional (2010/30/EU) 1.02 kWh/cycle
Energy consumption per cycle conventional - cavity 2 (2010/30/EU) 0.83 kWh/cycle
Energy consumption per cycle forced air convection (2010/30/EU) 0.81 kWh/cycle
Number of cavities (2010/30/EU) 2
Energy efficiency index (2010/30/EU) 95.3 %
Energy efficiency index cavity 2 (2010/30/EU) 120.3 %
EPREL Registration Number 2010 2088490
Usable volume (of cavity) (2010/30/EU) 71 l
Usable volume (of cavity) - cavity 2 (2010/30/EU) 34 l
Usable volume (of cavity) 71 l
Usable volume (of cavity) - cavity 2 34 l
Product size - cavity 2 Small
Energy Smart appliance, able to optimise consumption pattern (2017/1369/EU) No
Capability of wireless communication Yes, embedded
Network broadband technology capability N/A
Communication Technology used wifi
Possibility of remote upgrade No
Possibility of remote update for maintenance Yes
Possibility of Voice Control Yes, with optional accessory
Is there a camera in the appliance No
Location of second cavity Bottom
Automatic programmes No
Time-setting options Start and Stop
Time control Electronic
Motorized turn spit in the cavity No
Motorized turn spit of second cavity No
Control panel information of the cavity Fascia printing
Probe of the cavity No
Integrated Cleaning system of the cavity Pyrolytic
Integrated cleaning system of the second cavity Hydrolytic
Interior light Yes
Interior lights of second cavity Yes
Number of interior lights of the cavity 1
Number of interior lights of the second cavity 1
Position of interior lights of the cavity top
Position of interior lights of the second cavity top
Shelves type of second cavity Hook-in rack, smooth
Timer Yes
Trays 1
Lockable door Yes
Kind of interior light Round halogen light
Oven guides of the cavity Grids
Software update No
Grids of the cavity 1
Settings backup No
$1,474.42
