Bosch Series 4, Built-under double oven

Design

• LED-Display Control (Red)
• Interior halogen light
• Rotary dial, Retractable control dials, round

Features

• Control panel lock
• Electronic clock timer
• Automatic start
• Heating-up indicator

Top oven additional features

• Cavity volume: 34 litre capacity
• Full glass inner door
• Cavity (inner surface) top: Enamel grey
• Door hinge small cavity: Drop down oven door
• 3 shelf positions

Main oven additional features

• Cavity volume: 47 litre capacity
• EcoClean Direct : back panel
• Full glass inner door
• Door hinge big cavity: Drop down door

Top oven

• Oven with 3 heating methods: conventional top/bottom heat, Large-area grill, Small area grill
• Temperature range 50 °C - 275 °C

Main oven

• Oven with 5 heating methods: 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, Hotair gentle
• Temperature range 50 °C - 275 °C
• Fast pre-heating function

Accessories

• 2 x combination grid, 1 x universal pan, 2 x Universal pan, slim size

Performance/technical information

• Energy efficiency rating (acc. EU Nr. 65/2014): B(at a range of energy efficiency classes from A+++ to D)
• Energy consumption per cycle in conventional mode:0.83 kwh
• Number of cavities: Top Cavity Heat source: electrical
• Energy efficiency rating (acc. EU Nr. 65/2014): B(at a range of energy efficiency classes from A+++ to D)
• Energy consumption per cycle in conventional mode:0.83 kWh
• Energy consumption per cycle in fan-forced convection mode:0.71 kwh
• Number of cavities: Main Cavity Heat source: electrical
• Total connected load electric: 5.3 KW
• Nominal voltage: 220 - 240 V
• Appliance dimension (hxwxd): 717 mm x 594 mm x 550 mm

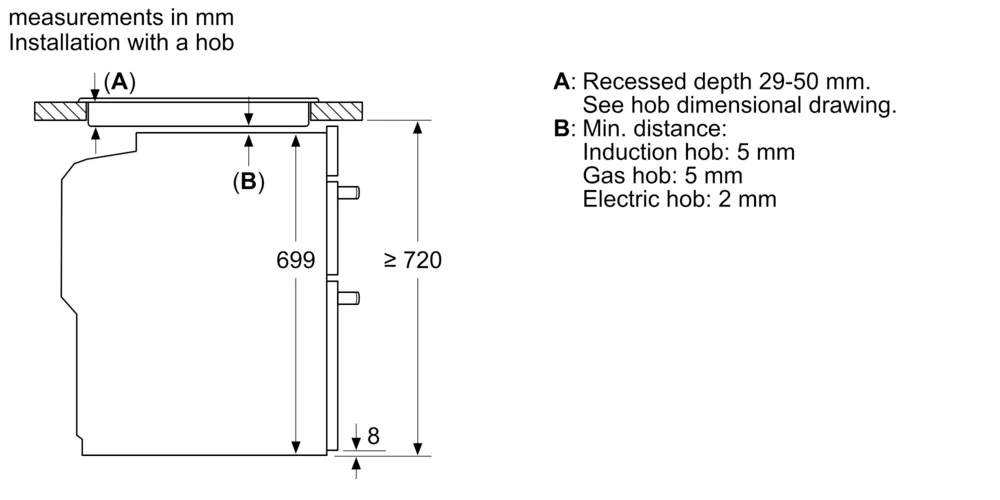

• Niche dimension (hxwxd): 720 mm - 720 mm x 560 mm - 568 mm x 550 mm
• Please refer to the dimensions provided in the installation manual
